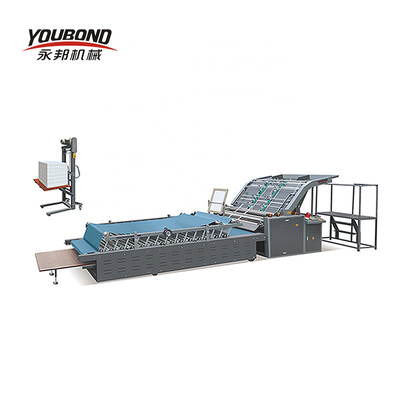

Semi Automatic Flute laminating machine
Features:
1,Manual feeding, easy operating
2,Bottom sheet feeding automatically
3,Single side glue amount adjustment
Specification of the YB-1100-1300-1450-1650B semi automatic laminating machine
|
Model |
Max.Sheet size |
Min.Sheet size |
Total power |
Speed |
Weight |
Measurement |
|
YB-1100B |
1100*1100mm |
350*350mm |
8kw |
0-90m/min |
3000kg |
8000*1770*1750mm |
|
YB-1300B |
1300*1250mm |
350*350mm |
8kw |
0-90m/min |
3500kg |
8000*1970*1750mm |
|
YB-1450B |
1450*1250mm |
350*350mm |
9kw |
0-90m/min |
4000kg |
8000*2020*1750mm |
|
YB-1650B |
1650*1300mm |
350*350mm |
11kw |
0-90m/min |
4500kg |
8000*2250*1750mm |
When machine arrives at the customers factory, we could dispatch the engineer to the customers factory for the installation and trainning, meanwhile, when customer has the questions, customer could contact us online, our service team will always there for customers service.
We have professional sales and well educated after-sales service team.
If you have any inquiry, please feel free to contact us, it would be our pleasure to help you and make your task a lot easier!
