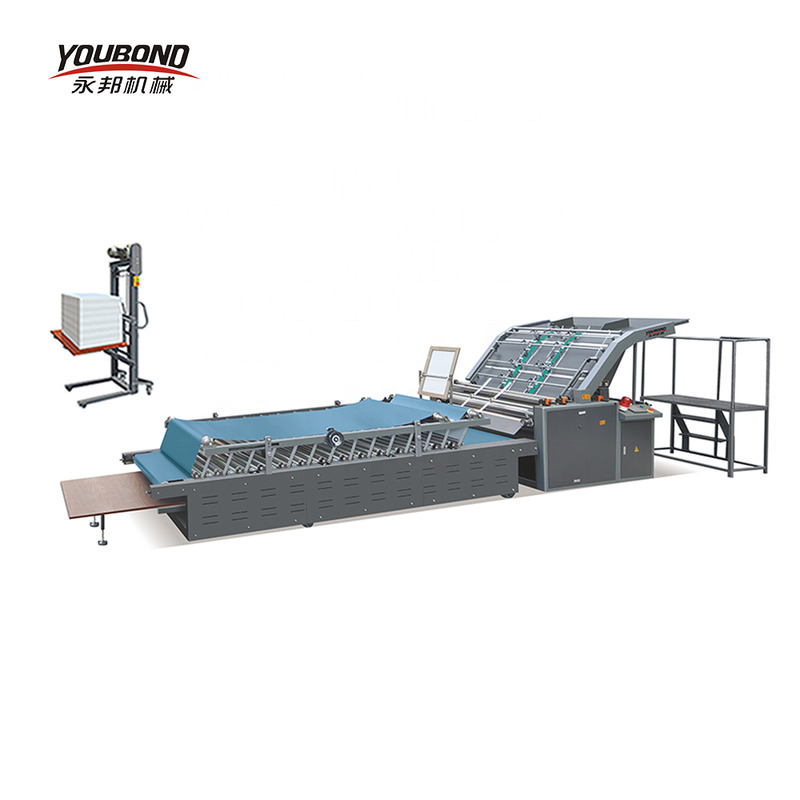

YB-1300B semi-automatic laminating and pringting 5 ply flute laminating machine

YB-1100B/1300B/1450B/1650B semi-automatic flute lamination machine

Introduction:

This machine use bottom sheet automatic sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for the top paper of the Cardboard paper (Duplex paper) from 175-600GSM, kraft paper from 130-450GSM, E flute (for the semi-automatic flute laminator). The bottom paper of the A/B/C/E/F flute, four layers paper, such as: AB/BB/BC/BE/EE, gray board paper from 600GSM to 2000GSM and three layers and five layers corrugated paper.

Main Technical Parameter:

1. Measurement of the machine: 8000*2020*1750mm;

2. G.W/ N.W: 4500KG/4000KG

3. Speed: 0-90m/min

4. Voltage: 380V, 50HZ, 9kw, 3 phase

5. Max. Sheet size: 1450**1100mm

6. Min. Sheet size: 350*350mm

7. Glue: cornstarch glue and the glue is adopting the flute laminating machine

8. Top sheet: top sheet of cardboard paper from 175GSM to 600GSM

Kraft paper from 130GSM to 450GSM

E/F Flute

9. Bottom sheet: A/B/C/E/F corrugated paper

four ply corrugated paper, such as: AB/BB/BC/BE/EE

the gray board paper from 600GSM to 1800GSM

Main Parts of the machine:

1. Touch screen – WENVIEW (Taiwang)

2. PLC – FATEK (Taiwang)

3. Liquid Level Relay – CHAT

4. Axletree – SNK (Japan), Haerbin (China)

5. Convey belt – HABASIT (Switzerland)

6. Plane transmission belt -- HABASIT (Switzerland)

7. The machine passed CE of European Union security certificate

Vedio on Youtube: https://youtu.be/3yezkulF2xM
