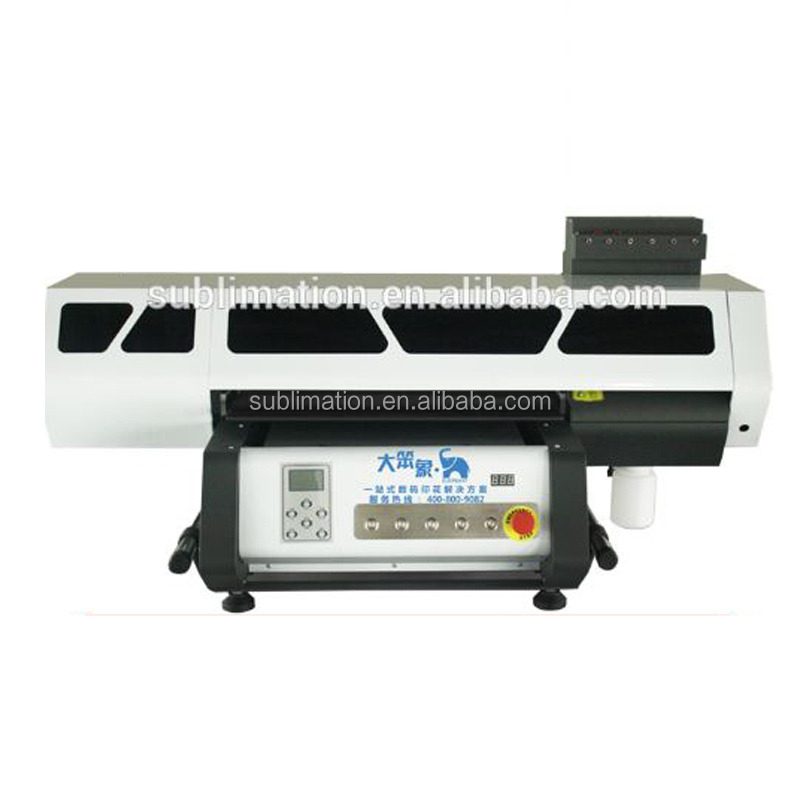

Cloth textile printer garment printing usage DTG inkjet printing machine
Speed: | |||||||||
*Application,for light and dark cotton, glass, wood, metal, ceramics, leather, PVC, Acrylic etc |
Specifications:
Item | Elephant flatbed digital direct-to-garment printer |
Max printing area | 40*60cm/60*90cm |
Print head | Micro piezoelectric head |
Numbers of nozzles | Colors: 720nozzles* 4 colors; colors with white: colors: 360 nozzles* 4 colors, white: 1440 nozzles |
Max resolution | 1440*720dpi(colors mode); 1440*1440dpi(white color mode) |
ink | textile ink, LED-UV ink |
Colors | K/C/Y/M; K/C/Y/M/W, K/C/Y/M/LC/LM, K/C/Y/M/LC/LM/W |
printhead quantity | 1pcs/2pcs |
High speed mode | 3Min-5Min /A3 |
Printing area | 40*60cm/60*90cm double working tables |
Media thickness | Up to 25mm |
interface | USB*2(CP*1, U disk*1) 10BASE-T/100BASE-TX |
Language | ESC/P raster |
power | Running: 52W, standby: 20W, sleep: 10W, power off:<0.5W |
voltage | AC100-240V 50-60HZ |
Operation environments | temperature:10°C~35°C Humidity:20~80%RH |
Dimension | 135*90*60cm(L*W*H), 150*140*65cm(L*W*H) |
Net Weight | 102KG/160KG |
Indepent Capping station Automatic cleaning moisturize print head | Newly patent techoloty LED UV Cure system Energy conservation Long life span |
New ink tank supply system White ink stirring function Ink volume alarming | Handle Easy to carry |
Working process:
Features:
A.newest shield design, protect operator's eyes
B.machine with handles, move conveniently
C.With warning system, improve quality and avoid ink shortage
D.support cylinder printing
1. Infrared sensor
Automatic detection of print height, protect printer head effectively
2. Printhead collision avoidance function
Printhead with bumper strip, Protect printhead when media height change.
3.Skip print funtion
Improve working efficiency and save printing time
4.Control panel with English language
Easy to control, more convenient
5.White and color printing simultaneously
Intelligent RIP technology, support white and color printing at the same time.
6. Change ink sequence
Effectively extend the use of printer head, saving printing cost.
Pictures Show:
Two colors for choosing: white anf Rose Gold
Sample show:
1. Reply the inquiry in 24 working hours.
2. We are in fabric printing field for over 10 years; Experienced staffs answer all your questions.
3. We povide one-stop services: t-shirt printer, textile sublimation printer, roll heat press machine, sublimation ink and paper , dark and light heat transfer paper etc
4. Do the best quality and services, we are the agent of printers, price can be competitive.
Package
Guangzhou Elephant Digital Technology Co., Ltd. is a manufacturer of sublimation printed sportswear for all kinds of sports, including ice hockey, cycling, motor-cycling, rugby, soccer, basketball, baseball, lacrosse, paintball, weight-lifting, wrestling with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in sportswear and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Q1: what's products your company supply?
A: We povide one-stop services: t-shirt printer, textile sublimation printer, roll heat press machine, sublimation ink and paper , dark and light heat transfer paper etc
Q2: What is the production cycle?
A: It varies a lot depending on product dimension,technical requirements and quantity. We always try to meet customers' requirement by adjusting our workshop schedule flexible.
Q3: What kind of payment terms do you accept?
A.: usually T/T, western union, Paypal, etc.
Q4: Is your company manufacturer?
A: we are the General Agent of printers,inktec ink etc and we are the factory in fabric sublimation printing for over 10 years.
Q5:How to print such beautiful photos on materials?
A: Only 4 steps:
