Product Description

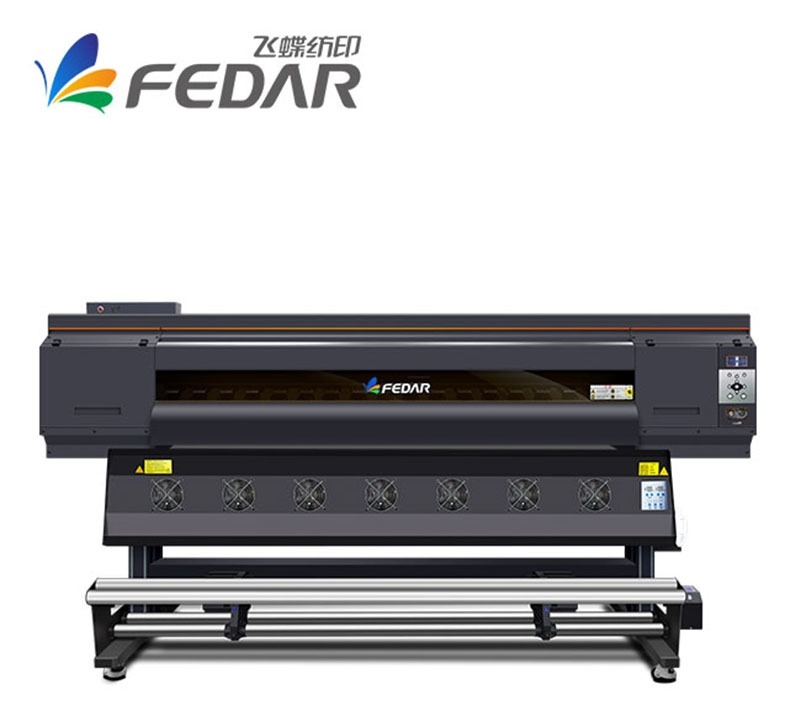

| Printer Model | FD5193E digital fabric printer | |
| Printhead | Type | I3200-A1 |
| Nozzle Qty | 800*4lines*3pcs printheads | |
| Height to Platform | 2-5mm | |
| Printing Speed | Production Mode | 2pass 120sqm/h |
| Average Mode | 3pass 85sqm/h | |
| High Resolution Mode | 4pass 65sqm/h | |
| Ink | Color | C M Y K |
| Type | Dye Sublimation | |
| supply method | Siphoning | |
| Max Printing Width | 1900mm | |
| Printing Media | Transfer Paper | |
| Media Transfer Method | Dual-drive tension take-up system,Auto air shaft feeding system | |
| Drying Method | External,Intelligent and air-heat Integrated drying system | |
| Moisture Mode | Fully sealed auto moisturing and cleaning | |
| RIP Software | Maintop6.0,Photoprint,Onyx,Wasatch and NeoStampa and etc. | |
| Image Format | JPG,TIF,PDF,BMP and etc. | |
| Computer | System | WIN7 64bit/WIN10 64bit |
| Hardware | Hard disk:500G (system disk more than 100G) GPU:ATI Discrete CD-ROM:DVD ROM Memory:4G or more CPU:Intel i5/i7 processor |
|
| Transmit Port | Gigabit LAN | |
| Work Environment | Temperature 20-35 centi degree; Humidity 35-65% | |
| Power | Input Voltage | 210-230VAC 50/60HZ 16A |
| Printing system | 1000W | |
| Drying system | Max power 3500W | |
| Dimension | Printer Dimension | 3066*880*1553mm |
| Packing Dimension | 3250*950*1060mm | |
| Weight | Net Weight | 351KG |
| Gross Weight | 482KG | |
FEATURES:
01. Adopt epson I3200-A1 heads. max speed up to 120Sq/H
A.Printing width of I3200-A1 is 1.3 inch,about 30% wider than DX5,printing speed can reach 120sqm/h with 3heads,also with 3200 nozzles(400*8lines),it has much higher speed and resolution than Dx5.
B.EPS3200 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect and high resolution printing performance.
C.EPS3200 printhead has very cheap price,only about 300-350USD/pc now,which helps client reduce cost to get more benefit!
D.Compared with Epson 5113 heads,the ink column makes hoses connection much easier and more simple,very convenient maintenance.
2. Anti-collision Car ,the distance between printhead and printing platform can be adjusted freely according to different printing consumables. Anti-collision devices are added at both ends to provide more comprehensive safety protection for printheads.
Advanced Capping Station
3.Equipped with advanced intelligent printhead cleaning and moisturizing device, it provides safe and convenient printhead cleaning and maintenance functions,which can also pump ink well and keep the ink flow fluently. Operation and maintenance is more convenient.
4. High Quality THK mute guide rail and slider .More stable running,longer working life,lower noise.higher resolution,and fewer errors in length.
5. Leadshine Motor Both the servo and stepping systems are driven by high-quality brushless integrated Leadshine motor with high-precision linear decoding, smaller error,higher precision and more stable operation.
6. Large Capacity & Two Stage Ink Reservoirs .Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output,and keep wide format high-speed printing wonderfully.Two stage ink supply system provides more guarantee for non-stop ink output.
7. Intelligent Ink Starving Alarm . Intelligent ink deficiency alert reduces the tediousness of frequently checking ink margin, and promptly reminds to add ink to ensure the continuity of printing work.
8.Intelligent Air-heat Dryer , two-stage heating, middle warm air and smart start-stop technology, ensure the drying performance and more energy-saving at the same time.
