advertising equipment plotter cutter machines for graphic design

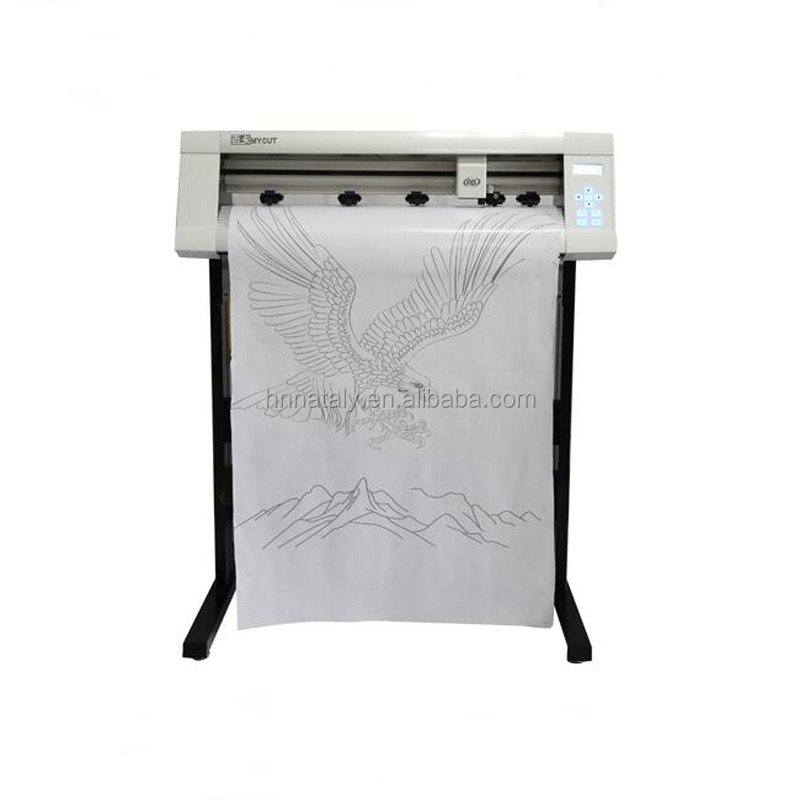

MYCUT Automatic Contour cutting 3M Reflective Film Cutter machine
typical configuration to meet most customers needs.
1.With ARMS sensor
2.High force to cut reflective film
3.Real high speed 256MB memory
4.High precision steel roller: guaranteed 5m without deviation of paper feeding
5.Low noise:ultra quiet design
6.High performance 32-bit processor with ARM Cortex-M3
7.High accuracy machine structure allows to cut 2mm letters without distortion
8.Can work with U disc directly,
9.Support CoreIDRAW output directly
Model | NDL330 (12'') | NDL630(24'') | NDL1200(48'') | NDL1500(59'') |
Media Way | Desk cutter | Floor Stand | Floor Stand | Floor Stand |
Main Board | High-performance & intelligentARM 32 bits CPU; 256MB memory | |||
Driver | High speed stepping motor, micro-step driver | |||
Max Paper Feed Width | 430mm | 730mm | 1370mm | 1600mm |
Max Cutting Width | 330mm | 630mm | 1270mm | 1500mm |
Max Cutting Speed | 800mm/s | |||
Cutting Force | 0-1000g | |||
Mechanical Precision | 0.05mm | |||
Repeatable Precision | < +-0.1mm | |||
Plotter Instruction | DM-PL/HP-GL Automatic Identification | |||
Interfaces | USB / RS232 port, U-disc port | |||
Power Supply | AC110V /220V±10%, 50Hz/60Hz | |||
Laser Positioning | ARMS(Automatical Registration marks system) | |||
Software |
Plug-in for Coreldraw, Artcut, Signcut and Signmaster | |||
Noise at Work | ≤50 DB | |||
External Dimension | 750*330*400mm | 1045*330*400mm | 1590*330*400mm | 1890*330*400mm |
Shipping Weight | 15kgs | 22kgs | 32kgs | 45kgs |
Usage of vinyl cutting plotter: Advertise sign,sticker,paper cutting,traffic signs and heat transfer industries.
Strong integrated carriage
Integrated grit roller
Big LCD display
Strong pinch roller
Standard blade
Standard Accessories:
1) User Manual(CD) 2) 1 RS232 serial cable 3) 1 Power cable and 1 USB cable
4) 3 Cutting Blade 5) 1 Blade Holder 6) 1 drawing pen 7) warranty card
Optional Choices:
1)floor stand
2)laser point
3)automatic contour function
4)Signmaster (we supply free coreldraw plug-in)
5)Basket
6)high cutting force
7)U Disc interface(work without computer)
8)bluetooth or wifi wireless transfer
Note:we will extra charge for optional configuration,please contact us for details
