machinery & FM-1450D 2021 Hot Material Made In China New Paper Corrugated Industrial Automatic Sheet Cardboard Flute Laminating Machine Laminator

1 Set
MOQ
$29,300.00(1 - 1 Sets) $29,000.00(2 - 2 Sets) $28,800.00(>=3 Sets)
Price
machinery & FM-1450D 2021 Hot Material Made In China New Paper Corrugated Industrial Automatic Sheet Cardboard Flute Laminating Machine Laminator
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Laminating Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location: Turkey, Viet Nam, India, Mexico, Argentina
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear
Condition: New
Application: Machinery & Hardware
Packaging Type: Iron Frame
Packaging Material: Metal
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V
Dimension(L*W*H): 11500*2350*2600
Weight: 5500 KG
Warranty: 1 Year
Key Selling Points: Competitive Price
Max Sheet Size(mm): 1450*1250
Min Sheet Size(mm): 370*370
Top Sheet Thickness (g/m2): 150-600
Bottom Paper Sheet Thickness (mm): 0.5-10
Bottom Corrugated Sheet Thickness(mm): A/B/C/E/F Corrugated /industrial / 3 Layer Corrugated Paperboard
Speed(m/min): 7000 Sheet/hour
Fitting Precision: ±1mm
Total Power(kw): 14
Measurement(mm): 11500*2350*2600
Weight(ton): 5.5
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: Turkey, Viet Nam, India, Mexico, Malaysia, Argentina
After-sales Service Provided: Online Support, Video Technical Support
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Our export packaging adopts winding film packaging and solid iron frame, which has been shipped all over the world without problem, and the packaging also can be customized according to customers.
Supply Ability: 20 Set/Sets per Month
Product Description
Product Overview

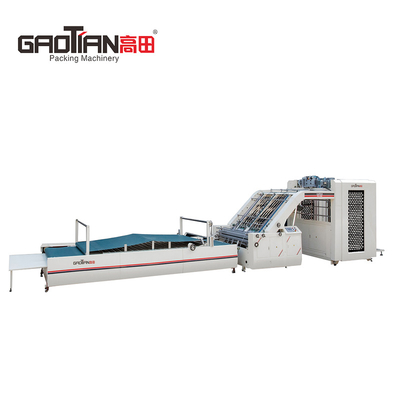

FM-1450D AUTOMATIC FLUTE LAMINATING MACHINE

This machine suitable for color top sheet and corrugated paper laminating. This machine use bottom sheet automatic sent by suction device.Top paper adopt scale continuous paper feeding,top sheet left and right all course correction,unique front gauge positioning way to insure the bottom paper never exceed.Easy operation and maintenance.
FEATURES AT A GLANCE
Title goes here.
1、We have recycle stacker, Air cylinder pressure feeding, make the corrugating output more stable with lower air suction.2、Adopting fish scale type to continuous feeding, uninterrupted. 3、The whole process of face paper rectification and front gauge positionin， 4、The overall pressure is adjusted by one side adjustment of worm gear and worm. 5、Single side pressure adjustment can ensure the same pressure on both sides, and it is convenient to change the paper. 6、It has full automatic glue replenishment system, which can automatically replenish the lost glue and cooperate with glue recycling to avoid glue loss and waste. 7、The linear speed of metering roller is designed scientifically. 8、Using cylinder to control rubber roller cleaning. 9、Our machine lower noisy and High accuracy. 10、High wall thickness。 11、Arc design make to reduce the impulsion, improve accuracy.
Right elevation
Filter
Motor
Feeding system
Transmission system
Gluing roller
PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
Transmission system
Motor
Gluing roller
SALES AND SERVICE NETWORK
Successful Project



SIMILAR PRODUCTS
FAQ
1、Q: How long is the warranty period of the machine？ A: one year. 2、Q: Does your machines with CE certificate? A: Yes. All of our machine with verified CE. 3、Q: How many days does the production take after the customer orders？ A: About 30 days 4、Q: When is the delivery date？ A:Within 30 days after the deposit is received, the goods will be delivered after the full amount is received. 5、Q: What price terms are acceptable? A:FOB NINGBO/SHANGHAI;CIF /CFR/CIP delivery port,etc. 6、Q:What are the payment terms you can operate? A:30% deposit by T/T, 70% balance by T/T paid before delivery; 30% deposit by T/T, 70% by L/C. In addition, we can negotiate the price terms with the customers. 7、Q: How about the shipping package? A:Our export packaging adopts winding film packaging and solid iron frame, which has been shipped all over the world without problem, and the packaging also can be customized according to customers. 8、Q: Is there any after-sales service and what kind of after-sales service can be provided? A:Yes, there is. We can provide video technicial support, online support, spare parts and so on. 9、Q:Are you manufacturer? Do you have your own factory, equipment and technicians? A:Yes, we are manufacturer.Our factory areas more than 10000m² and we have high end precision equipment and professional technicians with more than 10 years of experiences. 10、Q: Do you have any stock? A:We usually have hot models in stock, but you must consult us in advance to confirm. 11、Q:Is there a testing and commissioning process after the machine is completed? A: Yes, there is.We have QC department and professional debugging master, they will test and commission each machine before shippment and ensure that the machine can operate normally.
