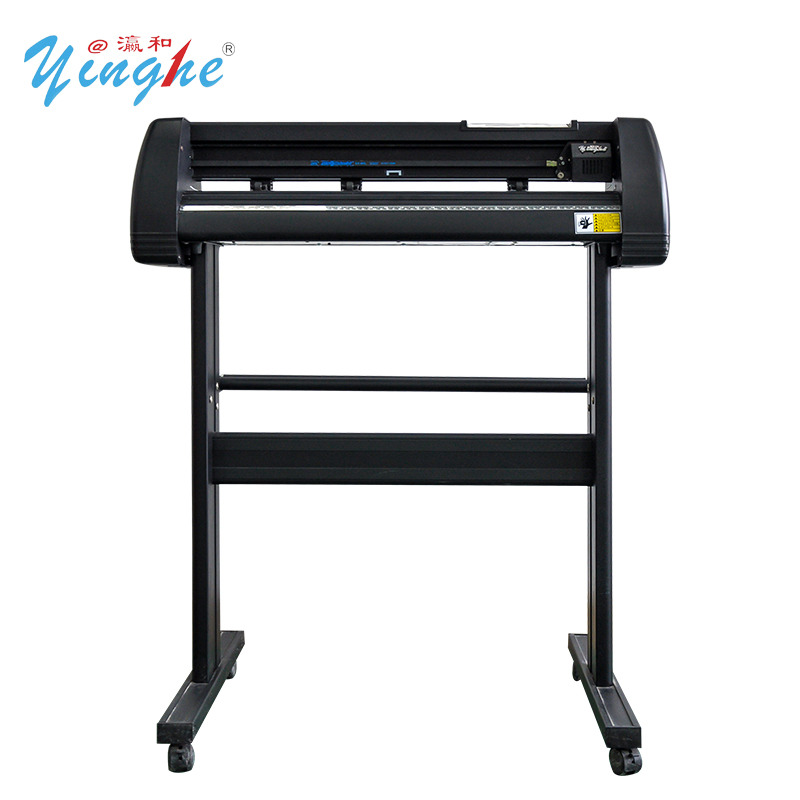

Yinghe Vinyl Cutting Plotter 720J High Speed Sticker Cutter
WhatsApp: +8615975538009
|
Model |
YH-360J |
YH-720J |
YH-870J |
YH-1100J |
YH-1350J |
|
Max.paper width |
360mm (14.2inch) |
720mm (28.3inch) |
870mm (34.3inch) |
1100mm (43.3inch) |
1350mm (53.1inch) |
|
Max.plotting width |
270mm |
630mm |
780mm |
1000mm |
1260mm |
|
N.W/G.W |
8/12KG |
11/20KG |
13/23KG |
15/27KG |
17/32KG |
|
Measurement(mm) |
605*350*370 |
960*350*430 |
1110*350*430 |
1340*350*430 |
1590*350*430 |
|
Stand |
None |
Optional |
Yes |
Yes |
Yes |
|
Max.speed |
800mm/s |
||||
|
Operation environment |
Temperature:5-35 Relative humidity:(30%-50%) Without condensation |
||||
|
Interface |
Serial (USB) |
||||
|
Cutting tool |
Imported hardness alloy steel blade |
||||
|
Language format |
DMPL/HPGL |
||||
|
Power supply |
AC90V-AC260V |
||||
|
Negative pressure adsorption |
Yes |
||||
|
Cutting blade soft landing |
Yes |
||||
|
Origin point setup |
Yes |
||||
|
|
|
||||
Feature
1.Characteristic design,adjusting cutting force and plotting speed at any time
2.European popular large screen high bright display ,clearly to operate
3.USB interface optional,supporting plug in and off when power is on
4.Serial port,large memory,quick off-line, Coreldraw output direct
5.Domestic popular plotting language,supporting many popular kinds of software at home and abroad
6.Unique double cutter position,double pressing strips for processing different kinds of materials
How to place a order:
1. After confirming order details, we will make Proforma Invoice for you.
2. After receiving 30% deposit will start test machine carefully. Ensure the excellent performance.
3. After tested the machine, will pack and send out.
4. When you received the printer, there is user manual and video to guide you install, operate and maintain.
5. When any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or Teamviewer. So you can rest assured about the after service.
6. We provide free training in our factory. When order several sets, can also send technician to your place. Help set up machine, and provide training to your staffs.
