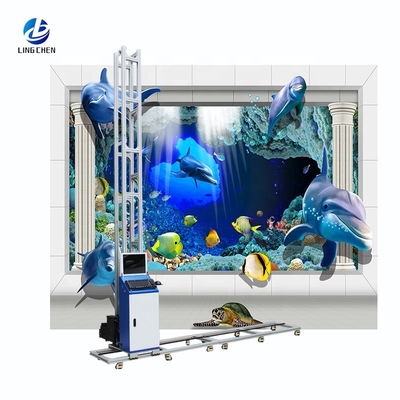

Product name: | 3D UV wall painting machine | Product model: | LC-A3 | ||
Equipment model: | Industrial control all-in-one machine | Nozzle type: | 1 Epson industrial nozzles | ||
Use pigments: | UV 6-color combination: C / LC / M / LM / Y / BK. | ||||
Support pictures: | mobile phone/camera shooting/network photos directly connected to the machine computer to export settings and print. | ||||
Print range | Vertical media, no restriction on material printing. | ||||
Print format: | Unlimited size, seamless splicing and printing beyond the height of the machine. | ||||
Print resolution: | 720*720dpi,720*1080dpi,720*1440dpi,1080*1440dpi. | ||||
Printing speed (optional) | Fast mode | 5-10㎡/H | |||
Quality mode | 3-5㎡/H | ||||
Voltage requirement: | 90-246V/380W,47-63HZ | Power consumption: | 20W without load, maximum 250W. | ||
Operating environment: | (-20℃-50℃)(-4℉-122℉), 10%-70% relative humidity, non-condensing. | ||||
Storage environment: | (-21℃-50℃)(-22℉-140℉), 10%-70% relative humidity, non-condensing. | ||||
Motherboard specifications: | 8-core high-speed CPU, 4GB memory, high-speed USB I/O | ||||
Wall detection: | Up and down double induction rock ultrasonic detector. | ||||
Computer system: | WIN7/WIN8/WIN10/XP | Machine software: | Built-in computer configuration and installation | ||
Power-off memory: | support | Automatic white jump: | support | ||
Machine language: | Chinese/English | Laser positioning: | precise infrared cross positioning system | ||
Machine weight: | 120KG | Original ink: | a set of free | ||
Packing size: | length, width and height Horizontal wooden box: 1600×770×600 Vertical wooden box: 770×500×1700 (Unit: mm) (Optional) | ||||
