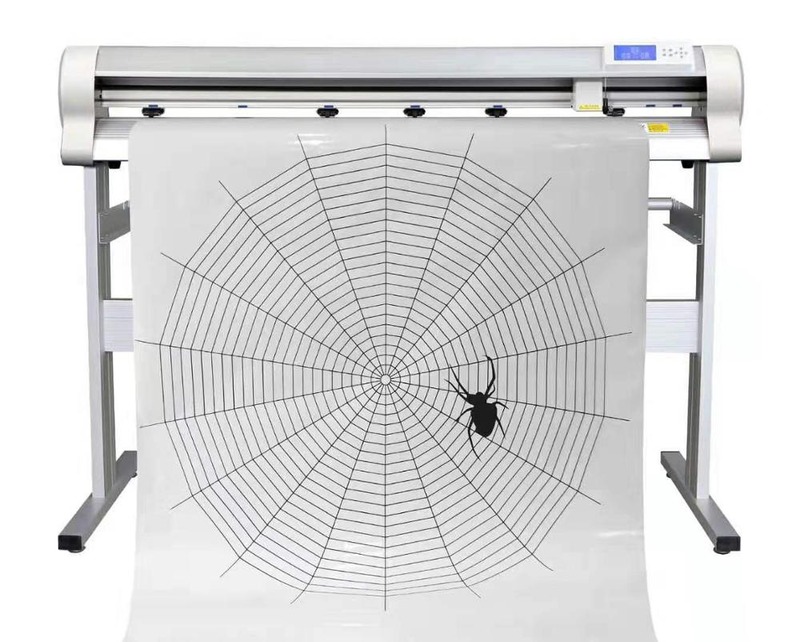

MYCUT 48inch camera auto contour cutting plotter vinyl cutter plotter
CY Series Main Features:
|
Model |
CY630(24'') |
CY1200(48'') |
CY1500(59') |
|
Main Board |
High-performance & intelligent ARM 32 CPU; 256MB memory |
||
|
Driver |
High speed stepper motor, micro-step driver |
||
|
Max Paper Feed Width |
730mm |
1400mm |
1600mm |
|
Max Cutting Width |
630mm |
1280mm |
1500mm |
|
Max Cutting Speed |
650mm/s |
||
|
Cutting Force |
0-500g/0-1000g (optional configuration) |
||
|
Mechanical Precision |
0.01mm |
||
|
Repeatable Precision |
< +-0.1mm |
||
|
Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
||
|
Interfaces |
USB / U-Disc port/ Ethenet port |
||
|
Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
||
|
Software |
Signmaster, Coreldraw |
||
|
Noise at Work |
≤50 DB |
||
|
External Dimension |
1000*320*390mm |
1670*320*390mm |
1900*320*390mm |
|
Shipping Weight |
23kgs(stand included) |
34kgs(stand included) |
45kgs(stand included) |
Standard Accessories:
1*cutter,
1*pedestal(CY330 not included),
1* power cable,
1* knife holder,
3* knives,
1* plot pen & holder,
1*USB cable,
1* signmaster plugin,
1* user manual
Standard Packing
With great quality Foam and Carton Packing
Make sure the machine won't be damaged during shipping
Delivery Info
within 7 days for order less than 100 units.
Within 15 days for order more than 100 units.
1.One year free warranty, main parts are free charge when damaged during the guarantee period.
2.Free training course at our factory with professional engineers.
3.We provide the consumable parts at agent price when you need replacement
4.24 hours online service each day, free online technical support.
5.We provide door to door technical support to agents, if necessary.
MYCUT is a leading brand for cutting machine under Huansheng Intelligence (Shenzhen) Co., Ltd. We are National High-Tech Enterprise located in the city of design—Shenzhen in South China and passes ISO9001:2015 authentication. Our own Huansheng Science and Technology Park is with over 10,000 square meters and more than 120 workers. All of MYCUT cutting machines are with CE and RoHS certificates, and FCC compliant. For all our screen protector cutting machines, vinyl cutters, screen protector applicator machine and UV printers, we can guarantee over 48 hours aging and zero-defect before leaving the factory.
