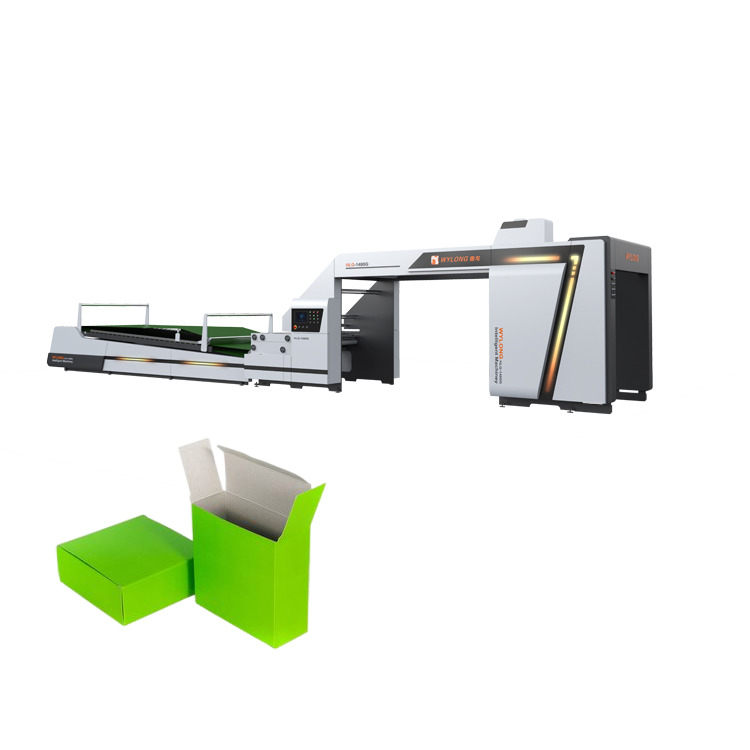

Wylong HLG Food Corrugated Automatic Flute Paper Laminating Machine

1.0 set
MOQ
Wylong HLG Food Corrugated Automatic Flute Paper Laminating Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Laminating Machine
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Film
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 22 KW /380V
Dimension(L*W*H): 157000x2200x2600mm
Weight: 7000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Product Name: Flute Laminating Machine
Max.Sheet: 1450x1450mm
Min. Sheet: 450x350mm
Thickness Of Upper Paper: 150-600g/m²
Thickness Of Bottom Paper: Thickness≤10mm A-F Corrugated Paper, Over 300g Paper Jam
Machine Speed: 12000P/H
Accuracy: ±1mm
Machine Space: 157000x2200x2600mm
Weights: 7000KGS
Power: 22KW/380V
Basic Infomation
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be free/fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description
Automatic Higher Speed Flute Laminating Machine
Features:
1.Up to 12000 per hour. 2.Fully realize intelligent automation. 3.Change paper size automatic adjustment machine. 4.Curve speed positioning ensures accuracy. 5.Intermittent positioning accuracy of the latest technology. 6.Automatic tracking system of base paper and surface paper. 7.Correction of the whole process of the left and right positioning of the surface paper. 8.Intelligent detection of paper length. 9.Intelligent fault display and alarm system. 10.Intelligent glue supply and recovery system. 11.Intelligent cleaning water circulation system. 12.Base paper bending pressure device. 13.Bottom paper suction size adjustment device. 14.U.S. MAC components open close suction. 15.The most advanced electrical control system. 16.Servo feeding system for face paper. 17.l-shaped pre pushing system. 18.Full anilox glue roller device. 19.Anti rejection device. 20.Surface paper adopts shaftless Feida paper feeding device.
Product Paramenters
Model
HLG-1480G
HLG-1680G
Max.sheet size
1450*1450mm
1650*1650mm
Min.sheet size
450*350mm
450*350mm
Thickness of upper paper
150-600g/㎡
150-60g/㎡
Thicness of bottom paper
Thickness≤10mmA-F corrugated paper,over 300g paper jam
Laminate Error
±1mm
±1mm
Max speed
12000pcs/h
12000pcs/H
Weight
7000kg
7000kg
Dimension
157000*2200*2600mm
161000*2400*2600mm
Power
22kw/380v
26kw/380v
Machine structure
1. Top Feeder Part: ▼▼
4 suckers for picking up paper and 4 suckers for conveying paper to ensure stable and fast paper feeding.
2. Bottom feeding and laminating part▼▼
3. Stainless steel material roller ,never rust ,guarentee the amount of glue ies enven.▼▼
4. Operation panel, Console.▼▼
4. Electrical Part▼▼
Famous brand electridal component ensure machine stability ,high efficiency and low failure.
display interface and PLC combination,display all the information, such as warning, error detect, failures,and operating speed, etc
5. Sheet pressing part▼▼
Slope type of the pressing convoyer, humanized design to save effort for the operator collecting the sheets.
Electric system brand
Name
Origin
Brand
Main motor
Taiwan
Datong
Paper feed servo motor
Domestic
Hechuan
Paper feed motor
Taiwan
Li Ming
Reducer motor
Taiwan
Datong
Reducer
Taiwan
Li Ming
High-speed feeder
Domestic
Gather together
Red light circle
Israel
VOLTA
Belt
Japan
UNIENTI
Vacuum pump
Germany
Baker
Bottom paper servo motor
Japan
Yaskawa
Face paper left compensation servo motor
Japan
Yaskawa
Face paper right compensation servo motor
Japan
Yaskawa
Vortex fan
Taiwan
Rui Chang
Electromagnetic clutch
Taiwan
Zhong Qin
The electromagnetic valve
Japan
SMC
Bearing
Japan
NSK
Chain
Hangzhou
Shield
Inverter
Domestic
Hechuan
Photoelectric
Japan
Omron
Relay
Japan
Omron
Buttons and switches, etc.
France
Schneider
AC contactor
France
Schneider
Touch screen
Domestic
Hechuan
PLC host
Domestic
Hechuan
Low voltage electrical appliances
France
Schneider
Motion Controller
Domestic
Raise
Related product
Why Choose Us
Company Profile
Packing&Shipping
FAQ
1.Who Are We? We are based in Zhejiang, China, start from 2004,sell to South America(30.00%),Africa(30.00%),Southeast Asia(20.00%),South Asia(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%). There are total about 11-50 people in our office. 2.How Can We Guarantee Quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What Can You Buy From Us? Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine,Automatic Paper box patching Gluing Machine, Automatic folder Gluer,Automatic Die Cutting Machine 4.Why Should You Buy From Us Not From Other Suppliers? Wylong Machinery Co., Ltd. is a professional corporation specialize in manufacture full complete production line of Automatic Cardboard Laminating Machine,Automatic Flute Laminating Machine and other industrial machinery with more than 20 years experience.
5.What Services Can We Provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C; Language Spoken:English
