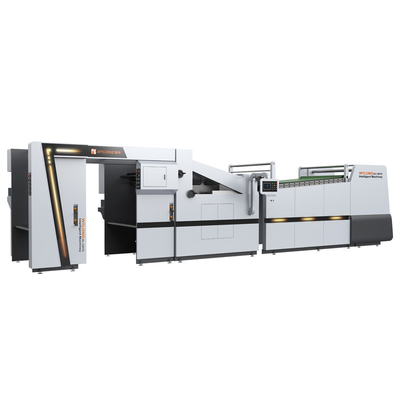

Food Carton Machine Flute Laminator Automatic Corrugated Paper Lamination Printing Stores 100-150pcs/min 7000kgs

1.0 set
MOQ
Food Carton Machine Flute Laminator Automatic Corrugated Paper Lamination Printing Stores 100-150pcs/min 7000kgs
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Laminating Machine
Applicable Industries: Manufacturing Plant
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Film
Packaging Material: Plastic
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 200/380V
Dimension(L*W*H): 9x1.9x2.2m
Weight: 7000 KG
Warranty: 1 Year
Key Selling Points: Automatic
Product Model: HLK-1207
Max. Sheet Size: 1195x700mm
Min. Sheet Size: 450x400mm
Power: 220/380V 12KW
Thickness Of Upper Paper: 120-1000g/m2
Thickness Of Bottom Paper: 200-1500g/m2
Laminate Error: +_0.5mm
Operation Space: 3mx12m
Max. Speed: 100-150pcs/min
Weight/Dimension: 7000KGS/9x1.9x2.2m
Basic Infomation
Model Number: HLK-1207
Payment & Shipping Terms
Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be free/fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Product Description
HLK Series High Speed Corrugated Board Cardboard Paper Automatic Laminating Machine
Application
Our company specializing in the production of HLK series high precision automatic mouunting machine,used for tissue paper,paper jam,gray paper ,coated paper ,such as joint processing,meet the double-sided printing and laminatingmthin and thick paper laminating special processing requirements,such as high precision of framed ,joint before and after deformation,suitable for wine box,shoebox,tag, elevator,toys,gift boxes,and exquisite packaging products processing,framed the paper smoothness,high accuracy,high hardness,good characteristics.
Our Advantages
Features
1. Original paper synchronous dynamic calibration system. 2. Adopt double gap design E type, can put into use laminating paper with a pallet truck. 3. Before send paper type suction a top system, size conversion from adjustment, easy to operate. 4. Fluff paper receiver system, can will overlap the finished product, to push again after fluff and tidy. ensure clean paper. 5. Electric adjustment, speed and pressure of paper length conversion is convenient. 6. PLC computer control system, can automatically detect the status of the operation, abnormal situation,maintenance and work record. 7. High precision coating system, automatic liquid level control, can according to adjust the volume.
Product Paramenters
Model
HLK-1207
Max. Sheet Size
1195x700mm
Min. Sheet Size
450x400mm
Power
220/380V 12KW
Thickness Of Upper Paper
120-1000g/㎡
Thickness Of Bottom Paper
200-1500g/㎡
Laminate Error
±0.5mm
Operation Space
3mx12m
Max. Speed
100-150pcx/min
Weight
7000kgs
Dimension
9x1.9x2.2m
Products Description
1. Feeder system:▼▼
Equipped with high speed dedicated feeder,feeding nozzle can freely adjust the angle to the paper;Feeder position adjusts
automatically.
2. Laminating System:▼▼
The paper is chased against the gauge by the speed difference between the paper and the motion gauge, performing high accuracy.
3. Sheet pressing part:▼▼
4. Electrical system:▼▼
Designed in the accordance with European CE stacdard, human-machine interface detects the faults automatically and alarms any abnormal.
Electric system brand
Name
Original
Brand
Main motor
Taiwan
Fukuda
Paper feed motor
Taiwan
Li Ming
Paper feed motor
Taiwan
Sanya
Reducer motor
Taiwan
Fukuda
Red light circle
Israel
VOLTA
Belt
Japan
UNIENTI
Reducer
shanghai
Xinyangda
Vacuum pump
Germany
Baker
Photoelectric
Japan
Omron
Relay
Germany
Schneider
Touch screen
Taiwan
Delta
Inverter
Taiwan
Delta
Bearing
Japan
NSK
Drive chain
Germany
IWIS
Belt tensioner
Taiwan
Taicang Feiting Transmission
The electromagnetic valve
Japan
SMC
Press button
Germany
Schneider
AC contactor
Germany
Schneider
PLC
Taiwan
Delta
Expansion module
Taiwan
Delta
