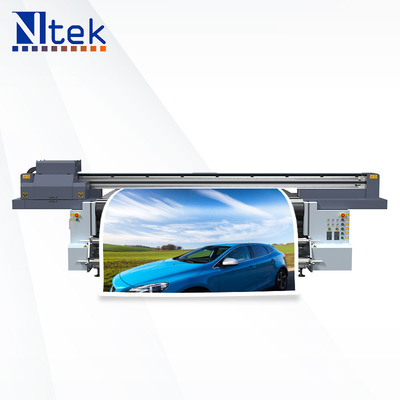

OEM&ODM Digital Advertising Printer PVC Board Indoor Outdoor Hybrid UV Flatbed Printing Machine with GEN5 Print Head

1 piece
MOQ
OEM&ODM Digital Advertising Printer PVC Board Indoor Outdoor Hybrid UV Flatbed Printing Machine with GEN5 Print Head
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Dimensions(L*W*H): 4550*2750 *1400
Plate Type: Flatbed Printer
Weight: 2800 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: Card Printer, Label Printer, Paper Printer, Tube Printer, Flatbed Printer
Voltage: 110V/220V
Applicable Industries: Building Material Shops, Manufacturing Plant, Printing Shops, Construction Works , Advertising Company
Warranty: 1 Year
Print Dimension: 2500*1300mm
Ink Type: UV Ink
Key Selling Points: Long Service Life
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Board
Type: HYBRID Digital Printer
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Lamp: LED UV Lamp
Color: CMYK+W+Varnish
Print Head: RICOH GEN5/GEN6
Print Speed: 15sqm/h-45sqm/h
Application: Indoor Outdoor Advertisement
Printing Material: Flat And Roll Materials
Keywords: HYBRID UV Flatbed Printer
Showroom Location: Egypt
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard wood packaging
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description

Ntek 3D UV Flatbed and Roll to Roll and Flatbed Printer 2513 New LED UV Digital Hybrid Printer
UV hybrid printer can widely print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, leather, banner flex, canvas, mesh paper, sticker, wallcoverings, etc.

Printhead

Ricoh Gen5/Gen6/
KM1024I/SPT1024GS printhead
2-16 units

Print Effect

Color, white, varnish and 3D
embossing effect optional

Printing Areas

Glass/Ceramic/Decoration/
Advertising&Sign industry
Product Specification
Product Name & Model
UV Hybrid Printer YC2513R
Printhead Type
RICOH GEN5/ RICOH GEN6/ KONICA 1024I/ SEIKO 1024GS
Printhead Number
2-16 heads
Ink Characteristics
UV Curing Ink (VOC Free )
Ink Reservoirs
Refillable on the fly while printing/2500ml per color
LED UV Lamp
More than 30000-hours life
Printhead Arrangement
C M Y K LC LM W varnish optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
TAIWAN HIWIN/ THK optional
Working Table
Vacuum Sucking
Printing Size
2500*1300mm
Roller Material Width
2500mm
Roller Material Diameter
200mm
Print Interface
USB2.0/ USB3.0/ Ethernet Interface
Media Thickness
0-100mm, higher can be customized
Printing Resolution& Speed
360*900dpi
4pass
15-33sqm/h

GEN6 head speed 40% faster than GEN5 head
Printing Resolution& Speed
720*900dpi
6pass
10-22sqm/h
720*1200dpi
8pass
 8-18sqm/h
Life of Printed Image
3 years (outdoor),10years (indoor)
File Format
TIFF, JPEG, Postscript, EPS, PDF etc.
RIP Software
RipPrint/ Photoprint
Power Supply
220V 50/ 60Hz (10%)
Power
3100W
Operation Environment
Temperature 20 to 30℃,Humidity40% to 60%
Machine Dimension
4.55*2.75*1.4m
Packing Dimension
4.55*2.25*1.67m, 3.3*0.85*1.22m
Weight
2800kg
Warranty
12 months exclude the consumables like printhead
YC2513R UV Hybrid Printer-Each Part Name
①UV LED Lamp ②Anti-static,Anti-crash ③Taiwan HIWIN guide rail
④Universal Wheel ⑤Top Heavy Rubber Roller

YC2513R UV Hybrid Printer-Machine Size : 4300*2750*1400mm

YC2513R Hybrid UV Printer-Each Side
Printer details

1. Ricoh G5/G6 Print Head

Our hybrid printer dopt gray level Ricoh Gen5/
Ricoh Gen 6 stainless steel internal heating
industry head, with high performance in speed
and resolution, suit for long-time working,
24 hours running.

2. High Mute Drag Chain

Our uv hybrid printer utilize high mute drag chain
on X-axis, ideal for protection of cable and tubes
under high speed motion. With high performance,
low noise, make the working environment more
comfortable.

3. Hard Anodized Vacuuming Platform

Our hybrid uv printer apply the hard anodized
vacuum suction platform, which can prevent
scratches by rigid materials, avoid damaging
the platform by rigid materials.

4. Taiwan HIWIN Guide Rail


Our inkjet priner adopt double guide rail on Y-axis,
compared with belt one, it's not easy to loose,
printer movement more stable, ensure the printing
resolution

5. All Steel Frame Structure

Our digital printer body structure is welded with
8cm*16cm square steel, millbed by big gantry
milling machine, and heated by temering oven,
will not easy to deform.

6. High Quality Motor

Leadshine and Panasonic motor optional, with
one year quality assurance. Adopt big power,
which can endure our flatbed printer long time
work and not burn out.
Top Heavy Rubber Roller
Secondary Ink Cartridge
Negative Pressure Device
Temperature Control System
Universal Wheel
Imported UV LED Lamp
Registration Pin
Anti-Static Device
Automatic Height Measurement
Printing Samples
CMYK LC LM White Varnish optional
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable inkdrop technology, provide 7/14/21pl ink droplet, achieve high speed and high printing resolution
Flex Banner
Decorative Painting
Mouse Pad
Wood Panel
Plastic
Advertising Sign
Acrylic
Ceramic Tile
Glass
Company Profile
Linyi Win-Win Machinery Co., Ltd
Linyi Win-Win Machinery Co.,Ltd is founded in 2009 in Shandong, China, is a high-tech machinery manufacturer, integrated with the R&D, production, sales and maintenance in a whole. We mainly manufacture large format UV printers and OEM service is available. We have 13 years experience in producing and exporting UV printers. The factory covers more than 20,000 square meters, with six professional production lines, mainly produce UV flatbed printer, UV
flatbed and roll to roll printer and UV hybrid printer. With high quality, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc., and OEM service is available.

The UV printer can widely print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, PVC expansion board, corrugated cardboard, bamboo fiber board etc; and for flexible materials such as PVC, canvas, leather etc., and widely applied in decoration industry, glass industry, advertising&signs industry, leather, furniture and ceramic industry etc. All our printers arewith CE certificate.
Ntek UV Hybrid Printer-Warranty
We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board, control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.
Packing & Delivery
YC2513R UV Hybrid Printer-Packaging
Seaworthy Packing: Inner packing with strech plastic film, outside packing with export plywood case
Packing Size: bigger case 4.55*2.25*1.67m, small case 3.3*0.85*1.22m Gross Weight: About 2800KGS
Customer Photos
Ntek Printer Customer All Over the World
Now our factory is looking for agents all over the world, if you are interested, welcome you to joint us
FAQ
1. How long does the printing images will last outdoors and indoor?
UV Hybrid printer printed images can last at least 3 years outdoors, and more than 10 years indoor.

2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3. How about the stability and quality of the printing images?
This UV hybrid printer can used to print on most of medias with best quality, durability, best result.

4. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer
has to be responsible for the accommodation and transportation costs of the technical staff.

5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printer and UV hybrid printer.

6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,
driver board, control board, motor, etc, except the consumables, such as ink pump, printhead, ink filter, and slide block etc.

7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand
the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can
contact our technician or me directly.

8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like
TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
