Home /Products/Vinyl Sticker Cutting Machine/Hard Soft Film Cutter Drawing 1400mm Vinyl Sign Sticker Cutter Plotter With Die Cut Function Machine

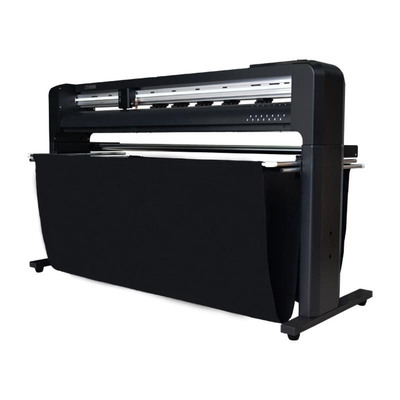

Hard Soft Film Cutter Drawing 1400mm Vinyl Sign Sticker Cutter Plotter With Die Cut Function Machine

1 set
MOQ
Hard Soft Film Cutter Drawing 1400mm Vinyl Sign Sticker Cutter Plotter With Die Cut Function Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GR8000-140
Voltage: 90V-240V
Cache Capacity: 2MB
Paper Feed Width: 1400mm
Cutter Pressure: 600 Grams Force/5.8N
Cutting Width: 1290mm
Cutting Speed: 800mm/s
Driver: Servo
Size: 1710mm*400mm*570mm
Product Name: Cutter Plotter
Industry: Advertising Signs/paper Drawing, Clothing, Traffic Signs
Usage: Hard Soft Film Cutting Drawing
Mechanical Accuracy: 0.0125 Mm
Compatible Operating System: Win10/8/7/XP
Software: Windows Driver, SignWorkPro ,CADtoPlotPro
File Format: HP-GL ,PLT
Marker Recognition: GARMS
Input Voltage: AC 90V-240V, 50-60Hz
Machine Power: 60W
Basic Infomation
Model Number: GR8000-140
Payment & Shipping Terms
Packaging Details: Outer package: Wooden box
Supply Ability: 300 Piece/Pieces per Month
Product Description
Product Overview
1. Plotter cutting machine is suitable for advertising production, graphic and text special-shaped contour cutting and small batch personalized custom production. 2.You can cut different films by it,such as traffic signs, high-strength reflective film, car paint film, mobile phone film, label film. 3. Vertical cutting plotter includes GR8000-80, GR8000-140, GR8000-180, we will recommend suitable machines for you according to your needs. 4. Our cutting plotter adopts a servo system and has a CCD camera, the pressure roller is more powerful, and when the machine cuts, it will be more accurate.
Product Parameter
Product Model
GR8000-140
Maximum cutting width
1290mm (under non-red light positioning conditions)
1220mm (under red light positioning conditions)
Minimum material width
70 mm
Maximum cutting thickness
1 mm
Maximum cutting speed
800 mm/s
Maximum cutting pressure
600g/5.8N, 8 sets of knife pressure
Sample Display
Details Display


Outstanding 7-meter straight line feed ability

The GR8000 series has a stable 7-meter straight line feed capability, which is a prerequisite for high-level processing and is
very suitable for the production of large-format graphic signs.


Tool nose compensation through hardware
Our product performs tool nose compensation through hardware, not software. Our hardware tool compensation method is in the
leading position in the industry. Using hardware tool compensation can keep the machine in a high-precision machining state for a long time without worrying about accuracy instability caused by software replacement.

Industry-leading offline barcode reading function
GUNNER has a one-key barcode reading function without connecting to a PC. GUNNER is easier to achieve completely offline automated
production and is more suitable for performing offline hybrid tasks. For example: access to multiple cutting tasks in a U disk,
after GUNNER reads the barcode with one key, the cutting task can be automatically retrieved and cut correctly


Smooth cut surface, no adhesion
Under the action of the precision grating ruler and the corresponding pressure control system, the cut surface of the material is
smooth, burr-free, non-adhesive, and easy to discharge waste. This feature can significantly reduce user workload.
Advanced mark point recognition function
Our software can generate outer contours with one click, and add markers conveniently. The machine uses the red light positioning
method to identify the mark points, which is simpler and time-saving. It only needs to manually identify the first point, and then
the machine automatically completes the identification of other mark points, and the positioning accuracy can be adjusted in the
software. When the material is placed at a certain angle, the marked points can still be read. This function can save operating
time.
Our Company & Factory
Anhui Yuhuan Intelligent Manufacturing Group Co., Ltd.
We have specialized in CNC routers, towel cutting machines and laser machine for many years. We constantly strive to provide products with high quality and competitive price.

Our pursuit is "No Perfect, But Better". And we offer after-sales service timely in order to meet you and cooperate with customers all over the world for a long time!
Exhibition
Packaging & Delivery
FAQ
1.Q:Can I change your machine configuration?
A:Of course,we will suggest suitable configuration according to your request,and customized it for you.
2.Q: Are you a trading company or manufacturer ?
A: We are factory and our products can be customized with your demands.
3.Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. It depends on your quantities.
4. Q: Will the machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam. (2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the machine will send to you safely.
5. Q: Can you arrange the shipment for me ?
A: We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available. 6.Q:How about payment?
A:We can accept 50% deposit if your order amount is above $5000,after receiving your deposit,we will produce machine for you.We will take photos or video for you when machine is ready the balance should be paid before shipment.
