Home /Products/UV LED Printing Machine/Hotels 2513 Inkjet Led UV Flatbed Printer 250x130cm UV Flatbed Printer

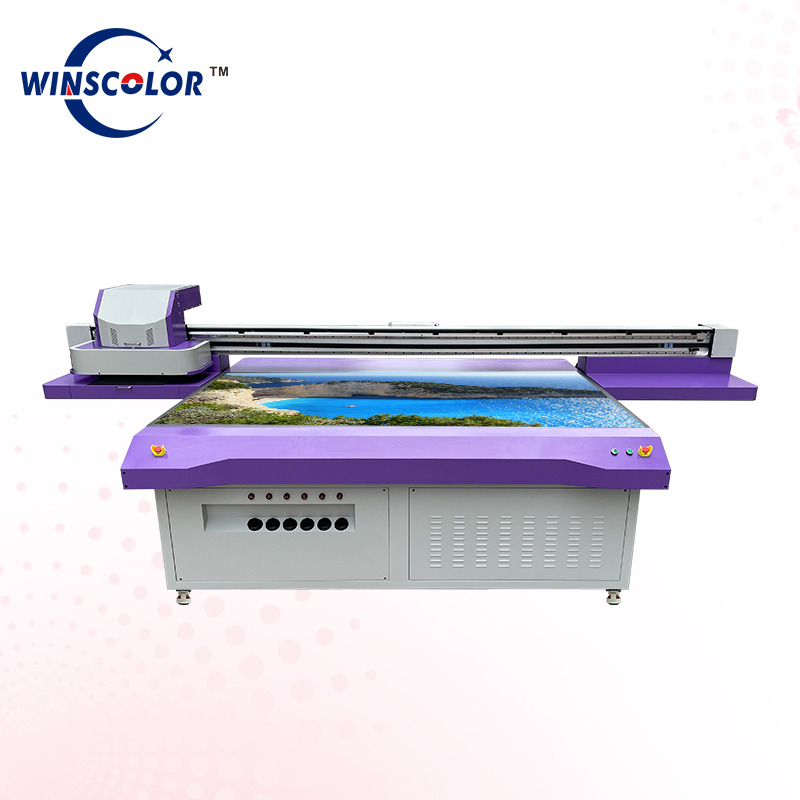

Hotels 2513 Inkjet Led UV Flatbed Printer 250x130cm UV Flatbed Printer

1 Set
MOQ
$25,000.00(1 - 4 Sets) $21,000.00(5 - 9 Sets) $8,000.00(>=10 Sets)
Price
Hotels 2513 Inkjet Led UV Flatbed Printer 250x130cm UV Flatbed Printer
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Dimensions(L*W*H): L3970mm*W2100mm*H1400mm
Plate Type: Flatbed Printer
Weight: 1500 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: Flatbed Printer
Voltage: 220V
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Warranty: 1 Year
Print Dimension: 2.5M*1.3M
Ink Type: UV Curable Ink
Key Selling Points: High Productivity
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Engine, Pump, Board
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Software: Photoprint
Print Head: RICOH G5/RICOH G6/TOSHIBA/KONICA
Printing Size: 2.5m*1.3m
Printhead Arrangement: C M Y K LC LM Lc Lm W V Optional
Print Speed: 15-20sqm/hr
Printhead Number: 2-8
Life Of Printed Image: 10years(outdoor),20years(indoor)
Media Thickness: 0-100mm, Higher Can Be Customized
After Warranty Service: Video Technical Support
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard wooden case packaging
Product Description
Products Description
Product Paramenters
Product Model
YC2513L
Printhead Technology
Drop-on demand piezo electric
Printhead Control
Printhead voltage is software adjustable
Printhead Type
RICOH GEN5
Printhead Number
2-4 Units
Ink Characteristics
UV Curing Ink (VOC free)
Ink reservoirs
Refillable on the fly while printing/1000ml per color
Lamp
UV LED lamp
Color Control
ICC based color, curves and density adjustment
Printhead Arrangement
C M Y K W W
Cleaning System
Positive Pressure Cleaning
Guide Rail
Taiwan HIWIN
Working Table
Vacuum Sucking
Printing Size
2500*1300mm
Print Interface
USB2.0
Media Thickness
0-100mm, higher can be customized
Print Resolution
300*900dpi,600*600dpi,600*900dpi,600*1200dpi
Printing Speed
15sqm/h-20sqm/h
Life of Printed Image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript3,EPS,PDF etc.
RIP Software
RIP PRINT/Photoprint optional
Power Supply
220V 50/60Hz(10%) >15A
Operation Environment
Temperature 20 to 28℃, Humidity 40% to 60%
Machine Dimension
4000*2100*1400mm
Packing Dimension
4550*2250*1650mm
Weight
1000kg
Warranty
12 months exclude the consumables
Machine Details
Printing Samples
Company Profile
Packing & Delivery
Customer Photos
FAQ
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

3. How about the maintance and aftersales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers.But customer has to be responsible for the accommodation and transportation costs of the technical staff.

4.Are you a manufacturer or trade agent?
We are the manufacturer of Uv flatbed printers.

5. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide one year warranty for all the electronic parts including the main board, driver board, control board, motor, etc. But there is no warranty for wearing parts like ink pump, printhead, ink filter, and slide block since they are consumables.

6. How can I install and start to use the printer?
At first, you should read the users' manual to understand the machine and watch the video. After you get the machine, our
technician will teach you how to install and use machine by remote control via Teamviewer or Skype. Whenever you have questions to the machine, you can contact our technician or me.

7.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

8. How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, winscolor should send new part within 48 hours by express likeTNT, DHL, FEDEX etc to the buyer. An shipping cost should be born by the buyer.

9. What kinds of materials need premier before printing
Glass, ceramic, metel, acrylic, marble etc
