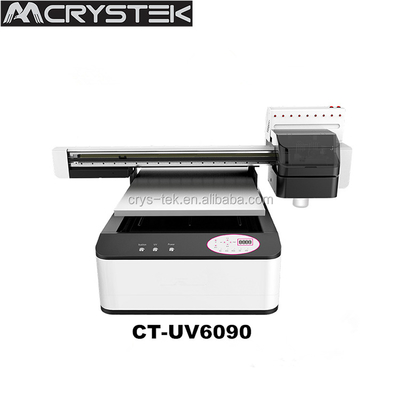

Small UV flatbed printer 60*90 size
Personalized exterior design
Unique suction platform
With white, color, varnish print function
Dual printhead, high resolution, diversified applications
Features:
1. Control panel with Chinese & English language;
2. Original RIP software supports white ink & color inks printing at the same time;
3. Automatically cleaning on control panel;
4. Ink channel switch helps to save inks and protect print head;
5. New LED ink curing system leads to low inks consumption;
6. White ink stir and ink volume alarm system can reduce print head clogged;
7. Import mute guide rail leads to high accuracy;
8. Automatically height sensor can protect the print head.
Description:
|
Model |
CT-UV6090 |
|
printhead |
Eps TX800 Printhead (Piezo 180 nozzles*6 channel) |
|
Number of Printhead |
2 heads |
|
Max Print Width |
610*900mm |
|
Printing method |
White, color + Varnish |
|
Printing Resolution |
360dpi*720dpi*1440dpi |
|
Ink |
UV Ink |
|
Double 4 colors / 4 colors+white+varnish / 6 colors+white |
|
|
Media |
610mm |
|
Glass, acrylic, leather, board, various signs, crystal, PVC, plastic, etc. |
|
|
Print Mode |
CMYK+W/CMYKLcLm+W/CMYKLcLm+Varnish |
|
Print Height |
0-110mm above media adjustable |
|
Graphic Format |
TIFF, JPG, EPS, PDF |
|
RIP software |
Photoprint |
|
Input Power |
AC220/110±10, 50HZ~60HZ |
|
Working environment |
Temperature 20-25℃ Humidity: 15-20%Rh |
|
Machine Dimension |
1510*1600*740mm 155KG ±15kg |
|
Packing Dimension |
1650*1450*800mm 300KG ±15kg |
Printer introuduction:
Printing Sample display:
Services: If you have any question or help, engineer will control your computer to help you solve problem.
Engineers available to service machinery overseas
Traning: You arre welcome to send engineer to our office for free training.
Packing : By Wooden Box
Shipping: By Sea. Huangpu, Guangzhou Port
