Home /Products/UV Flatbed Printing Machine/YC3321R Multifunction UV Inkjet Printer Hot Selling Hybrid Inkjet (VOA Free) Roller UV Curing Flatbed Printer

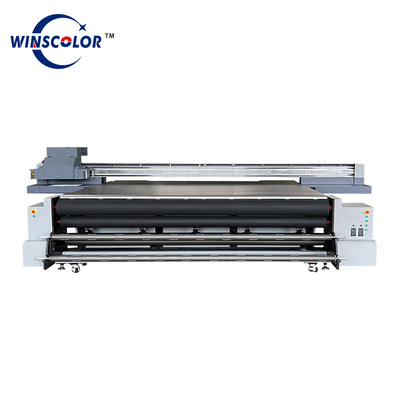

YC3321R Multifunction UV Inkjet Printer Hot Selling Hybrid Inkjet (VOA Free) Roller UV Curing Flatbed Printer

1 Piece
MOQ
$36,000.00(1 - 1 Pieces) $30,000.00(2 - 9 Pieces) $20,000.00(>=10 Pieces)
Price
YC3321R Multifunction UV Inkjet Printer Hot Selling Hybrid Inkjet (VOA Free) Roller UV Curing Flatbed Printer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Inkjet Printer
Applicable Industries: Hotels, Building Material Shops, Printing Shops, Advertising Company
Condition: New
Plate Type: Hybrid Printer
Usage: UV Flatbed With Roll To Roll Printer
Automatic Grade: Automatic
Color & Page: Multicolor
Voltage: 220V 50/60Hz(10%)
Dimensions(L*W*H): 5.37*3.78*1.46m
Weight: 3000 KG
Warranty: 1 Year
Print Dimension: 3300*2100mm
Ink Type: UV Ink
Key Selling Points: Multi Color
Marketing Type: Hot Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Motor, Board
Product Name: YC3321R
Print Head: GEN5/GEN6/KM1RICOH G024I/SPT1024GS
Application: Metal,Plastic,etc
Ink Color: CMYKW V Optional
Key Words: Inkjet Printer
Ink Characteristics: UV Curing Ink (VOA Free)
Roller Material Diameter: 200mm
Print Interface: USB2.0/USB3.0/Ethernet Interface
Print Resolution: 720X600dpi/ 720X900dpi/ 720X1200dpi
RIP Software: Photoprint/RIP
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard plywood case packing
Supply Ability: 300 Piece/Pieces per Month Multi Color Printing Digital Glass Cup Printing Machine Price fo
Product Description
Product Description
Printhead
RICOH GEN5/GEN6
Printhead 2-8 units
Image Quality
Bright picture,
fresh as before.
Application
Wide range of applications to
meet a variety of needs.
Product Paramenters
YC3321R UV Hybird Printer

①UV LED Lamp ②Anti-static,Anti-crash ③TAIWAN HIWIN guide rail
④Switch and power switch area ⑤Top Heavy Rubber Roller ⑥Universal wheel
⑦Industrial Printhead
Product Model
YC3321R
Printhead Type
RICOH GEN5/GEN6/KM1024I/SPT1024GS
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink (VOC Free)
Ink reservoirs
Refillable on the fly while printing 2500ml per color
LED UV Lamp
more than 30000-hours life made in Korea
Printhead arrangement
CMYK LC LM W V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide rail
TAIWAN HIWIN/THK Optional
Working Table
Vacuum Sucking
Printing Size
3300*2100mm
Roller Material Width
3300mm
Roller Material Diameter
200mm
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
15-33sqm/h
(GEN6 40% faster than this speed)
720X900dpi
6PASS
10-22sqm/h
720X1200dpi
8PASS
8-18sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
Photoprint Edition/RIP
Power Supply
220V 50/60Hz(10%)
Power
8500W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension
5.37*3.78*1.46m
Packing Dimension
5.55*2.25*1.67m 4.3*0.85*1.22m
Weight
3000kg
Warranty
12 months exclude the consumables related to ink, such as ink filter, damper etc
Above specification subject to change without notice beforehand
Machine Details



Panasonic Servo Motors And Drives
Using Panasonic servo motor and driv-er,effectively overcome the step loss pro-blem of step motor.High speed prin-ting performance is good,low speed running is stable,dynamic rsponse is timely,run-ning stable.




High Precision Mute Linear Gudie Rail
Adopting HIWIN mute double linear gui-de rail which is high resoultion,low noise and durable,to ensure the carriage mov-ing smoothly,inks eject more stably.


Vacuum Adsorption Platforem
Hard oxidized honeycomb hole srctiona-lized adsorption platform,strong adsorp-tion capacity,low moter consumption, customers can adjust the adsorptionar-ea according to the side of the printing material,the platform surface hardness is high,scratch resisitance,corrosion resistance.




German IGUS Energy Chain
Germany IGUS Mute Drag ChainUtilize Germany IGUS mute drag chain on X axis,ideal for protection of cable and tub-es under high speed motion.With high performance,low noise,make the work-ing environment more comfortable.





High Precision Aluminum Beam
Equipped with self-researched cold draw and high-strength aerial alumimun mate-rial,it ensures printing precision and sta-bility,guarantee the perfect output.
Tempreture control system for printheads plate
Printhead Anti-collision
Korea UV LED Lamp
Universal wheel
Sencondary Cartridge
Top Heavy Bubber Roller

Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolu-tion cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Printing Samples
Wood
Car Sticker
Glass Photo
Acrylic
Mouse Pad
Advertising Sign
Plastic
Wall Background
Fiber
Company Profile

Jinan Yingcai Digital Technology Co., Ltd


Jinan Yingcai Digital Technology Co., Ltd ( short as”Winscolor”) was established in 2015, locating in Jinan City,Shandongprovince, China. The independent plant covers more than 20,000 square meters, with six professional production lines to supportannually sales volume.Winscolor is an exporter of UV digital printing machines . Now our printer series include UV Flatbed printer, UV Flatbed with Roll to roll printer, and UV Hybrid printer, as well as smart UV printer.
Winscolor digital printing machine was exported since 2015, with widespread praise and recognition by our customers, our printers are welcome more than 150 countries in Asia, Europe, Australia and Africa etc.
Winscolor UV printers have been widely used in advertisement, sign,decoration, glass, crafts and other industries. We strengthen technological innovation, optimize the cost of consumption, andstrive to create the best quality UV digital printing machines for our customer, and some comprehensive solu-tions according todifferent demands in various industries.
Winscolor uphold the concept of excellence, and continuously improve product quality, to become the most trusted brand in UV printing equipment industry. We will continue to committed to industrial printing R & D and innovation and promote the healthy development of printing industry.
Winscolor UV Hybrid Printer-Warranty
We provide one year warranty for our uv printers including all the electronic parts including the main board, driver board, control board, motor, etc, except the consumables, such as printhead, ink pump, ink filter, and slide block etc.
Packing & Delivery
Customer Photos
FAQ
1.How long does the printing images will last outdoors and indoor?
The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2.What is the cost of ink for printing on the materials?
Normally it is around 0.5-1usd per square meter for ink cost.

3.How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4.How about the maintance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But costomer has to be responsible for the accommodation and transportation costs of the technical staff.

5.Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6.Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the consumables, such as ink pump, prin-thead, ink filter, and slide block etc.

7.How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Teamviewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8.Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9.How will you achieve the warranty?
If any electronics or a mechanical part is confirmed to be broken, Ntek should send the new part within 48hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10.What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
