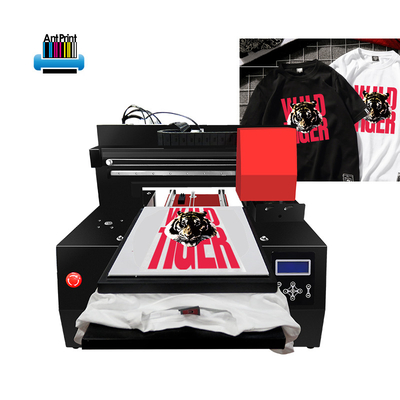

2020 Newest Dx5 head 1440dpi DTG UV printing machine a3 t-shirt printer with 16 pass
| Products name | Digital direct to apparel printer socks tshirt hat textile apparel pillow printer printing machine |
| Printing Technology | Double Printer heads advanced Micro Piezo 12 color pigment inkjet technology |
| Ink colors (12 colors) | Model 1:
Head No.1 Cyan, magenta, yellow, black, white, white Head No.2: white + white + white + white + white + white Model 2: Head No.1 Cyan, magenta, yellow, black, light Cyan, light magenta Head No.2: white + white + white + white + white + white Model 3: Head No.1 Cyan, magenta, yellow, black, gloss oil, gloss oil Head No.2: white + white + white + white + white + white |
| Max Printing speed | 8 pass, 70s/A4 full size |
| Print head | XP600 |
| Max resolution | 16 pass |
| transmit data | Gigabit net |
| Max Printing Size | A3 (330mm×600mm) |
| Max thickness | 200 MM |
| Printer head Protection | Intelligent Self Protect System |
| Ink system | Continue ink supply system with damper cartridge |
| Ink bottle | 8 set Ink Tanks with 500ml or 250ml per bottle |
| Height adjustment | Automation |
| Ink consumption | 10 ML/SQM |
| Voltage/ Power | VAC220/110 ± 10 ,50HZ~60HZ,Power ≤ 35W |
| UV lamp power | 50 W + 50 W |
| UV lamp Temperature | 60 degree(UV lamp surface)40 degree (1cm far from lamp surface) |
| Working environment | 10-35 degrees (50°-95°F), humidity 20~80% |
| Head Cleaning method | Automatic / Manual |
| Printer/packing size | 77cm×72cm×60cm / 87*82*76cm |
| Net /Gross weight | 49kg / 75kg |
| Printing Software | Special printing software |
| Computer system | Windows system, Gigabit net,network adapter contain below character: Gigabit,GBE,10/100/1000M,RTL8169 |
| Ink Type | Textile Ink/ Edible ink / UV ink |
| Language | English, Chinese |
| Special Remarks | Customized service is available |
| Standard Enclosure | Software 1 set, power line 1 set, Network line 1set, guidebook 1 set |
| Application | Tshirt / phone case / ABS plastic / acylic / metal / glass / ceramic |
Antprint Co., limited specialized in the flatbed printer since the year of 2007 in China. Now we are doing all of the flatbed printer business, such as UV flatbed printer, eco-solvent flatbed printer, food printer and t-shirt printer. We also supply the eco-solvent ink, UV ink, textile ink and food ink, Epson printer head, Epson motherboard, clean unit, CISS ( continue ink supply system), carriage,damper etc. It is our vision to be the best small format multifunction flatbed printer supplier in China, always offer customers the best quality products, 100% good service and cooperation opportunity is our mission, embracing change and flux, taking customers as the center always become our team values!
Q1: Do you have any other video about this double head garment printer?
-- Yes, feel free to sent inquiry to us, and we will sent your more demo videos.
Or you can watch via our official web: Ant-Print.com Or Youtube search AntPrint
Q2: Can you help me test my design before i place order for you?
-- Yes, just sent inquiry and we will help you arrange the samples.
Q3: Can i print on dark garment / tshirt by your this printer?
-- Yup, this double heads printer will good at printing on dark tshirt, because there is one special printhead for print white ink, so the dark t-shirt quality will be perferct.
For more questions, feel free to sent " Inquiry " to us!
|
