Overview:
A3 size pvc visa card printing machine iphone skin printer that made by dosign digital technology, it can print on the glass, metal, plastic, acrylic, ceramic...etc. with vivid color and fast speed, it is really a good choice for entire level customers or kiosk using.
it was made with Chinese famous Hoson board system and DX8 TX800 dx5 dx7 Printhead, can get max. printing speed by A4/63s, 6 color model, so can print on dak materials with CMYK+WW to get a good white ink density. And conbine with Ultra RIP software, can print all colors at one pass.
Specifications:
A3 size uv led flatbed digital inkjet tx800 printer. Please check the details as following:
| QUOTATION SHEET OF A3 TX800 DX5 DX7 UV PRINTER | |
| Printer Model | A3 UV Printer DS-A3U |
| Printhead | Micro Piezo Technology DX5 DX7 DX8 TX800 Print head |
| Printing Size | 320*500mm |
| Print resolution | 720*1440 dpi |
| Accepted material's height | 20cm |
| Print quality | True Photographic quality |
| Printing direction | Smart Bi-directional Printing Mode |
| Printing speed | 720 dpi 50 seconds/A4 size |
| 1440 dpi 100 seconds/A4 size. | |
| Applicable industry | Rigid PVC board, glass, plastic, organic board, leather, rubber, specialpaper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, ceramic tile, glass, marble, granite, paperboard etc |
| Max Media weight | 10 KGs NET. |
| Operating system | Windows XP/ME/Vista/Win7/ |
| Interface | Double USB port |
| Languages | English |
| Ink colors | C, M, Y, K, WHITE |
| Ink type | UV LED ink |
| Ink supply | 250 ml/bottle |
| Height adjustment | Automatic |
| Driving power | 110 V/ 220 V. |
| Power consumption | 36 W/ Hour. |
| Ink consumption | 15 ML/SQM. |
| Software | Photoshop, CorelDraw, Illustrator, |
| RIP Software | Free RIP software can print all colors at one time |
| NW/GW | 62KG/85KG |
| Machine Size | 820mm x 625mm x 430mm |
| Packing Size | 920mm x 750mm x 620mm |
Details Parts:

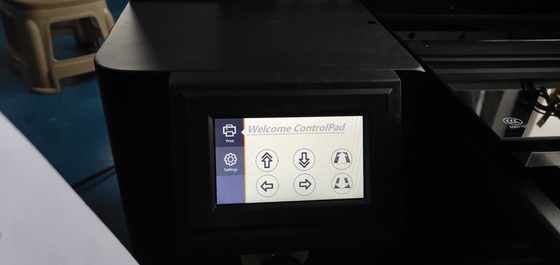

Well-designed touch screen. Easily adjust platform positive and do the basic setting.
LED control display, easy to operate and control machine working status
Automatic lifting capping unit equipped, it is great for printhead daily Maintenance and good for full nozzles high quality printing
White ink stir system is equipped. Decrease the problems caused by white ink precipotation and protect printhead from clogging
Leadshine motor and drive for X axis moving, and thickend carriage aluminium alloy beam
Printing Samples:
Technology Service:
Customer Families:
Customer Said:
| Contact Person : | Victor Liu |
|---|
